SPECIFICATIONS
Applicable People: Men
Board Category: Double Rocker
Brand Name: NoEnName_Null
High-concerned chemical: None
Origin: Mainland China
Type: Electric Skateboard

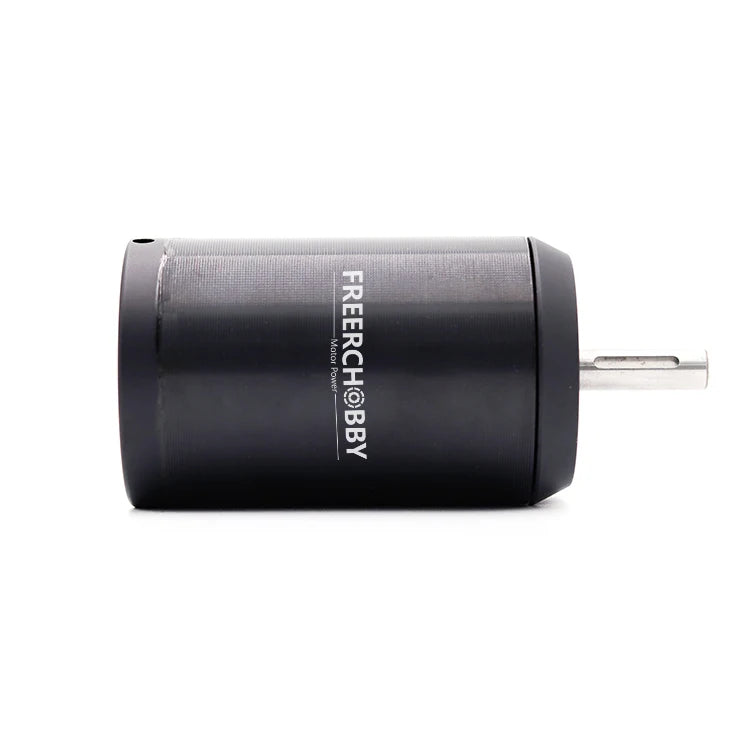

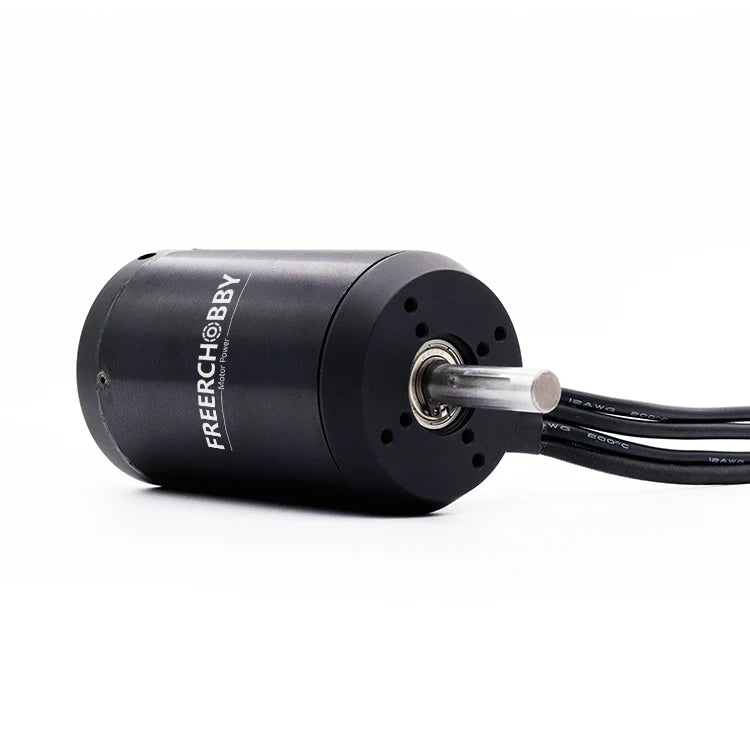

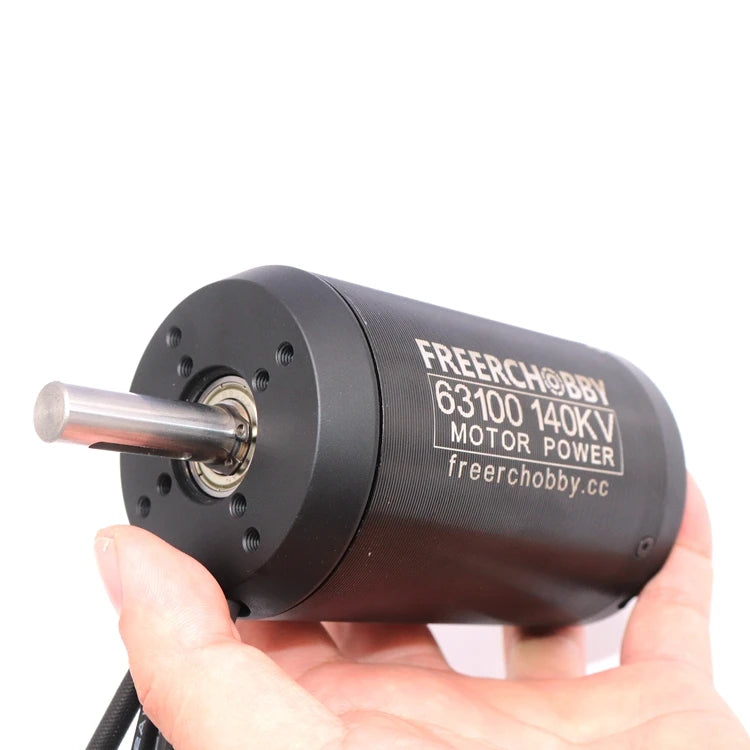

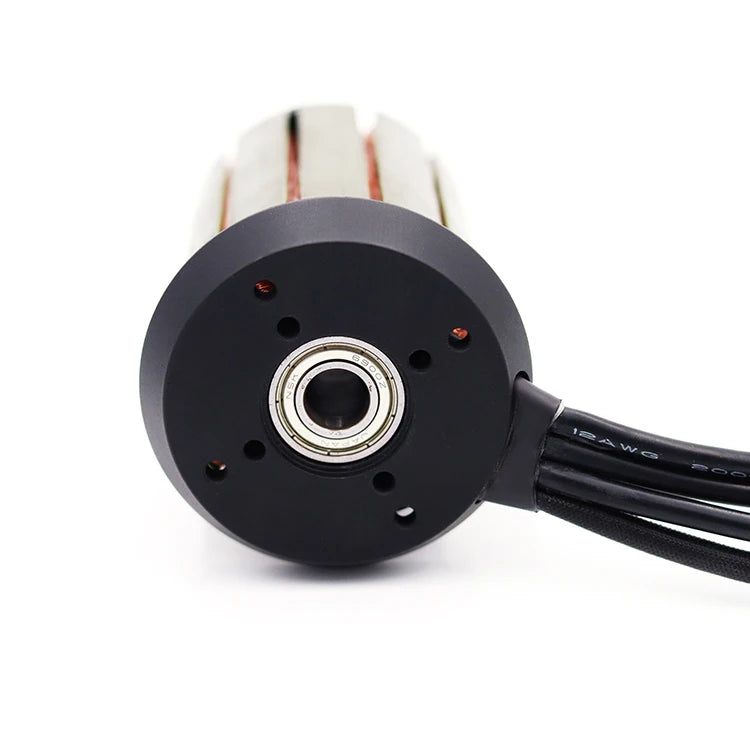

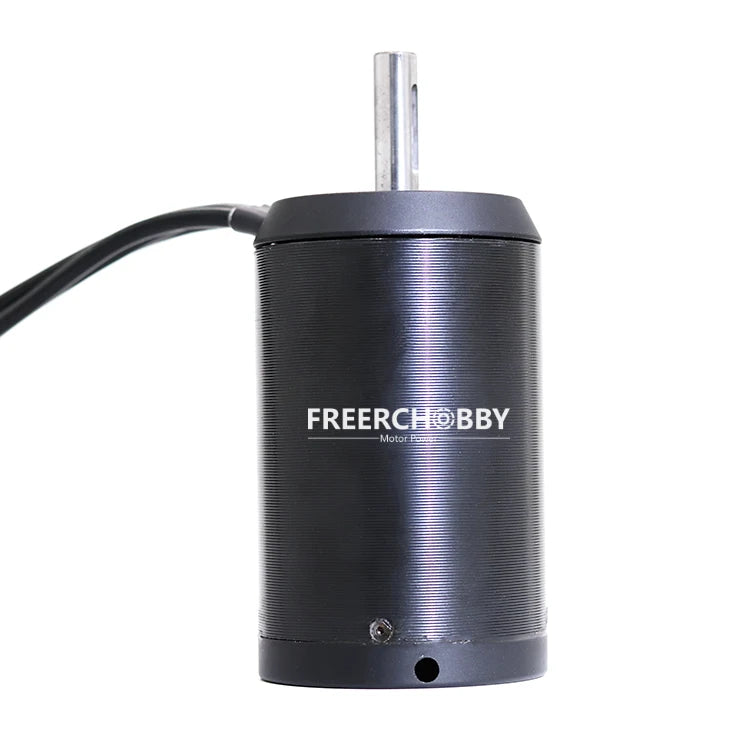

63100 140kv 190kv 5000W dual hub belt Direct drive dc brushless motor for Electric skateboard robot scooter go kart ect
Motor information:
Motor |
63100 |
Power |
5kw max |
KV |
146 |
Motor wind |
9 |
Idle current |
1.9A at 10v |
Resistance |
0.031Ohm |
Inductance |
77uh |
Max current |
100A |
Battery |
4-14s |
ESC |
100-120A |
Torque |
10Nm |

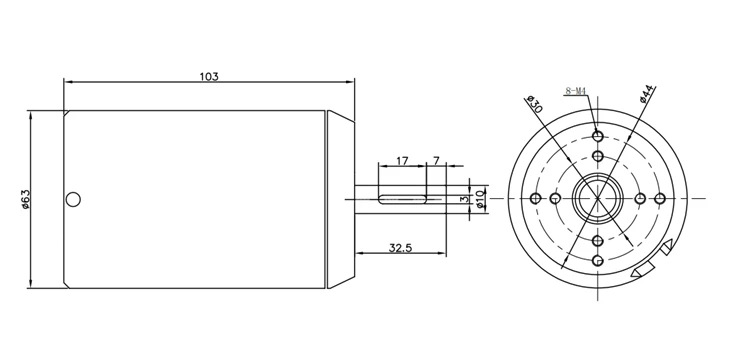

Diameter |
63.4mm |
Length |
103mm |
Total length |
135.5mm with shaft |
Shaft |
10mm with keyway（8mm as requested） |
Weight |
1400g |
WARRANTY
All Skateboard motors are tested at factory before shipping. This warranty does not cover damage from misusing. Brushless motors used in extreme conditions will be an user issue and may invalidate this warranty. For this reason always monitor motor temperature after the first running
SHIPPING
International Buyers – Please Note:
1) Import duties, taxes and charges are not included in the price or shippings. These charges are buyer’s responsibility.
2) Most motors will be sent out via DHL,if you have shipping method requirements,pls leave us message about shipping method.
3)For Brazil and Russia,the shipping method is only EMS
Shipping Method (express): DHL, TNT, FedEx, UPS or EMS
Delivery Time (express):5-15* business days
*Shipping time may vary depends on buyers location.We hope it arrives on time; however, since this is an international delivery, shipping time usually depends on the courier company and your local customs,so it is appreciated for your understand.
