SPECIFICATIONS
Applicable People: Men
Board Category: Flat-Plate
Brand Name: NoEnName_Null
Hign-concerned Chemical: None
Origin: Mainland China
Type: Electric Skateboard
is_customized: Yes
It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.
Warm tips:
Phase filering is not available for Flipsky ESC75100 and 75200!
Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.
Here below video and blog links FYI.
YouTube：Click here
Blog：Click here
Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.
Here below video and blog links FYI.
YouTube：Click here
Blog：Click here
Specs:
Voltage:14-84V (4-20S)
Continuous Current:100A
Max Current:120A
Firmware: latest (firmware update supported)
ERPM:150000

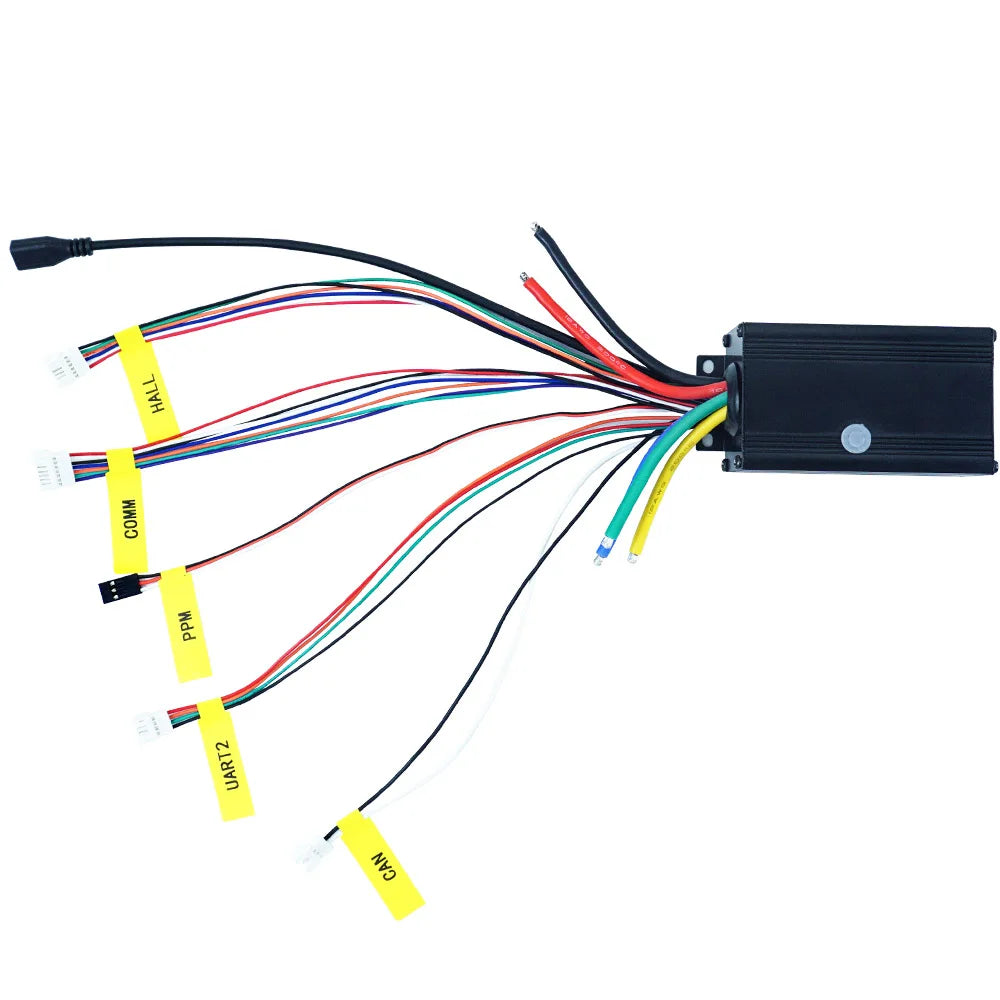

Control Interface Ports:USB,CAN,UART
BEC:5V@1A
Modes:DC, BLDC, FOC (sinusoidal)
Supported Sensors:ABI，HALL，AS5047，AS5048A
Input Set Support:PPM，ADC，NRF,UART

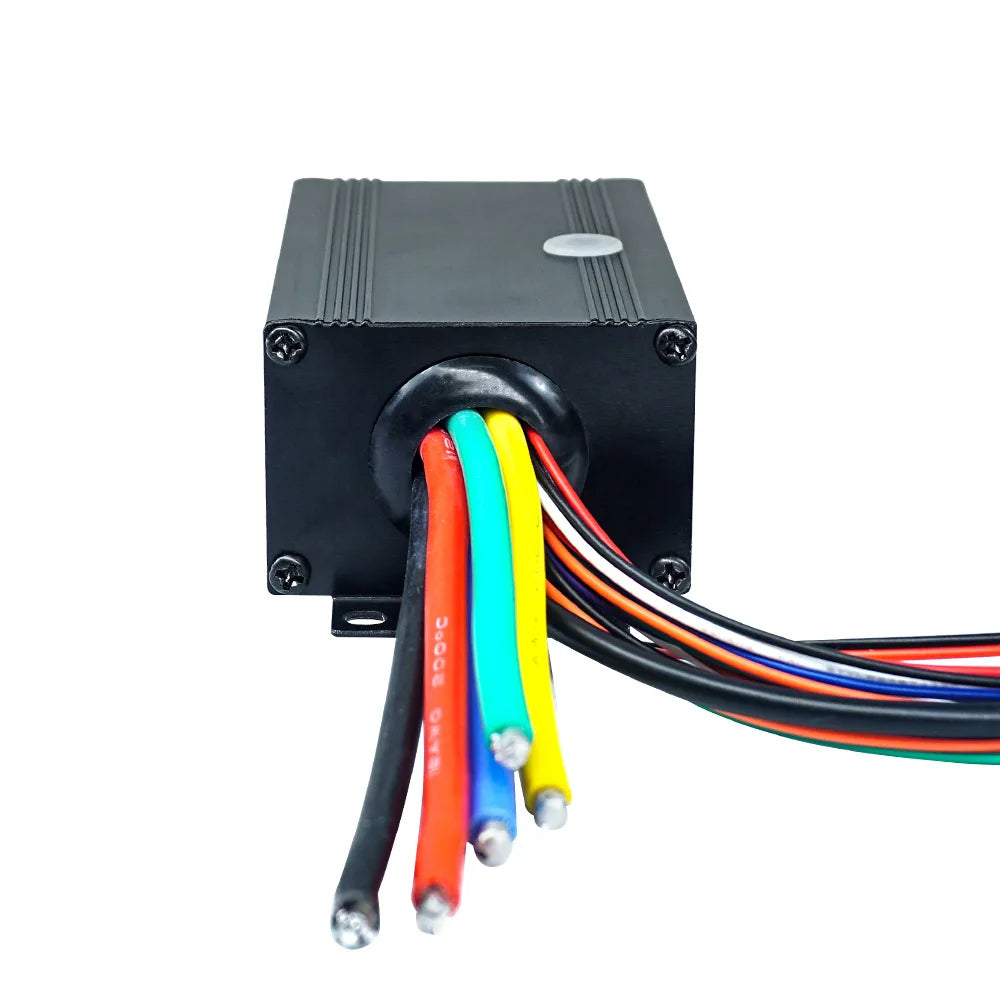

Wire Size: 12AWG

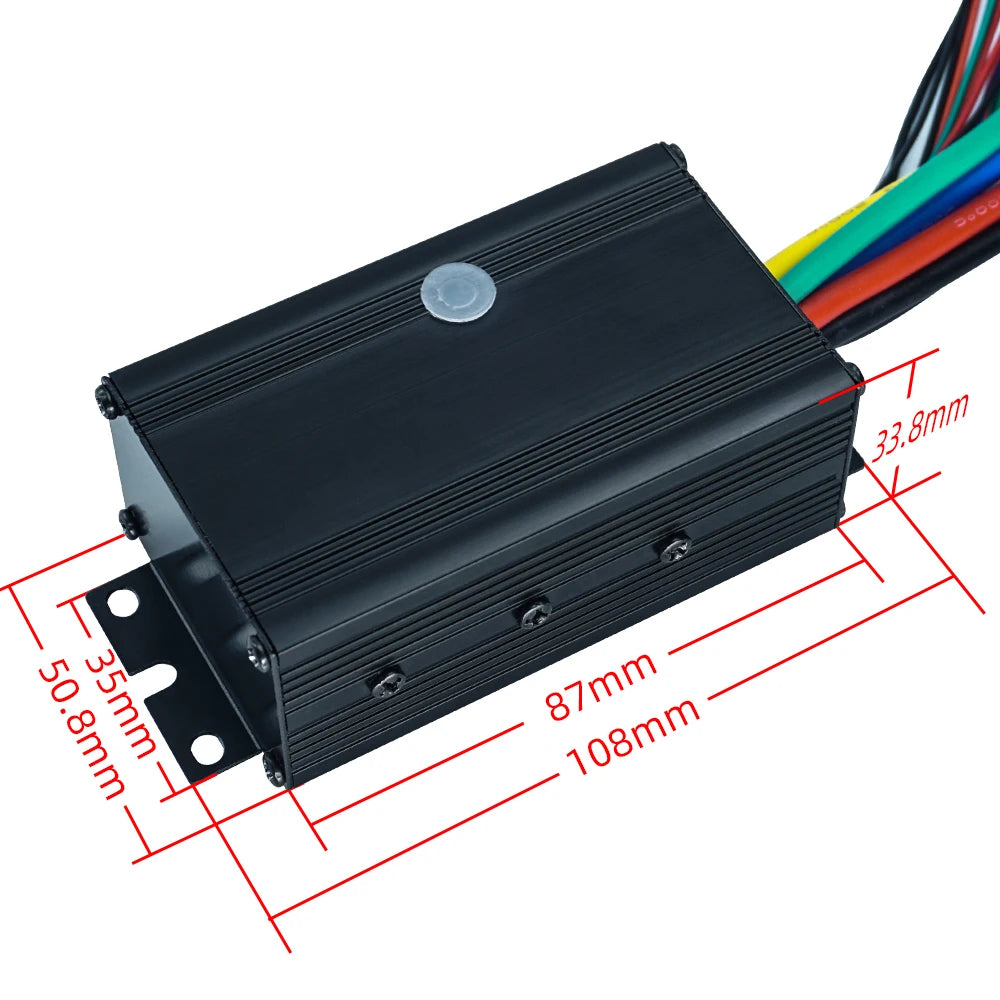

Size:L85mm*W50.7mm*H33.8mm
Programmable: Yes
Regenerative Capacity: Yes
Feature:
Two COMM ports, UART bluetooth module, IMU,screen display or remote controller supportable.
Based on VESC, programmable via vesc_tool with overheat and overcurrent protection.
Package included:
FS75100*1pcs
USB cable*1pcs
Hall sensor adapter (6pins)*1pcs
Manual*1pcs
USB cable*1pcs
Hall sensor adapter (6pins)*1pcs
Manual*1pcs

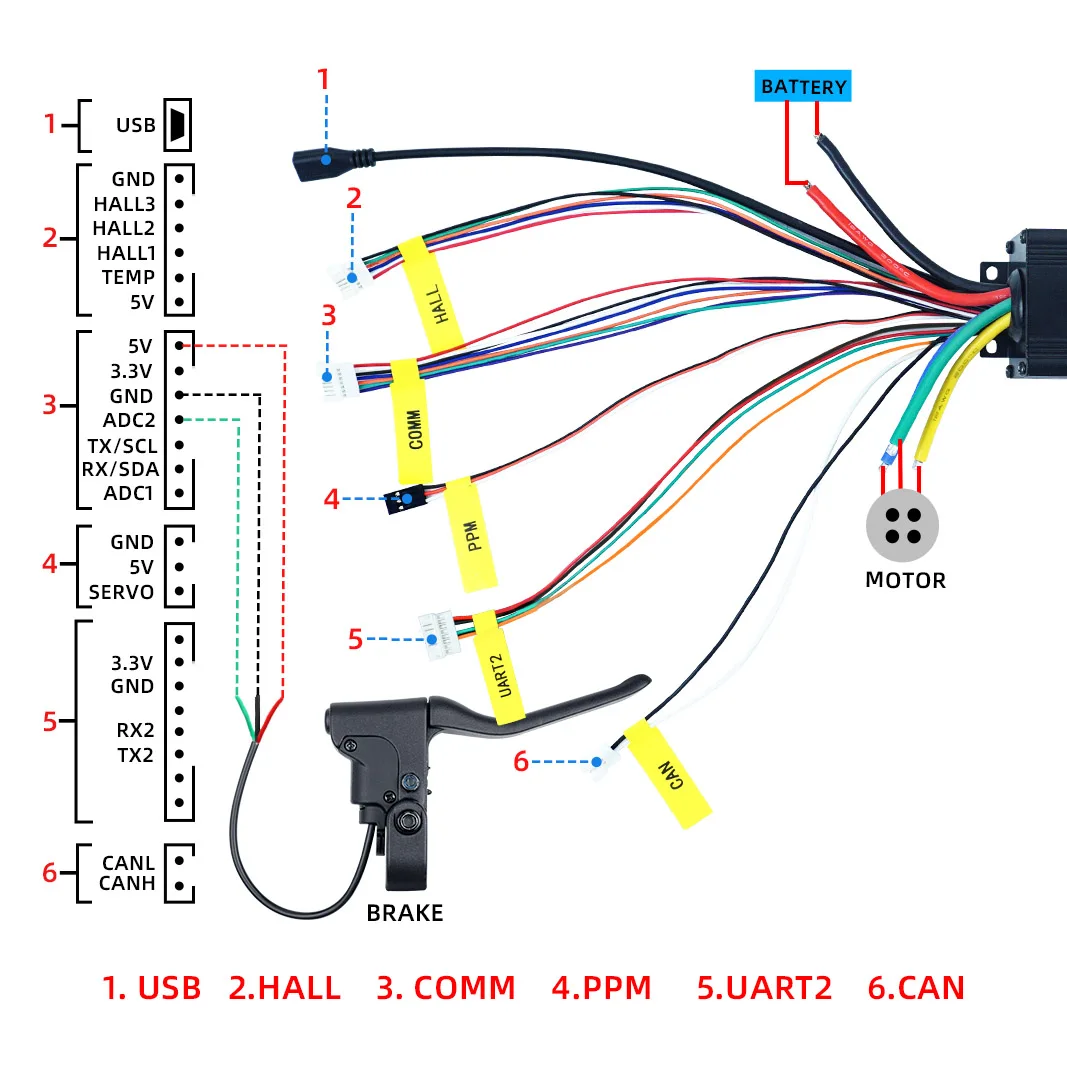

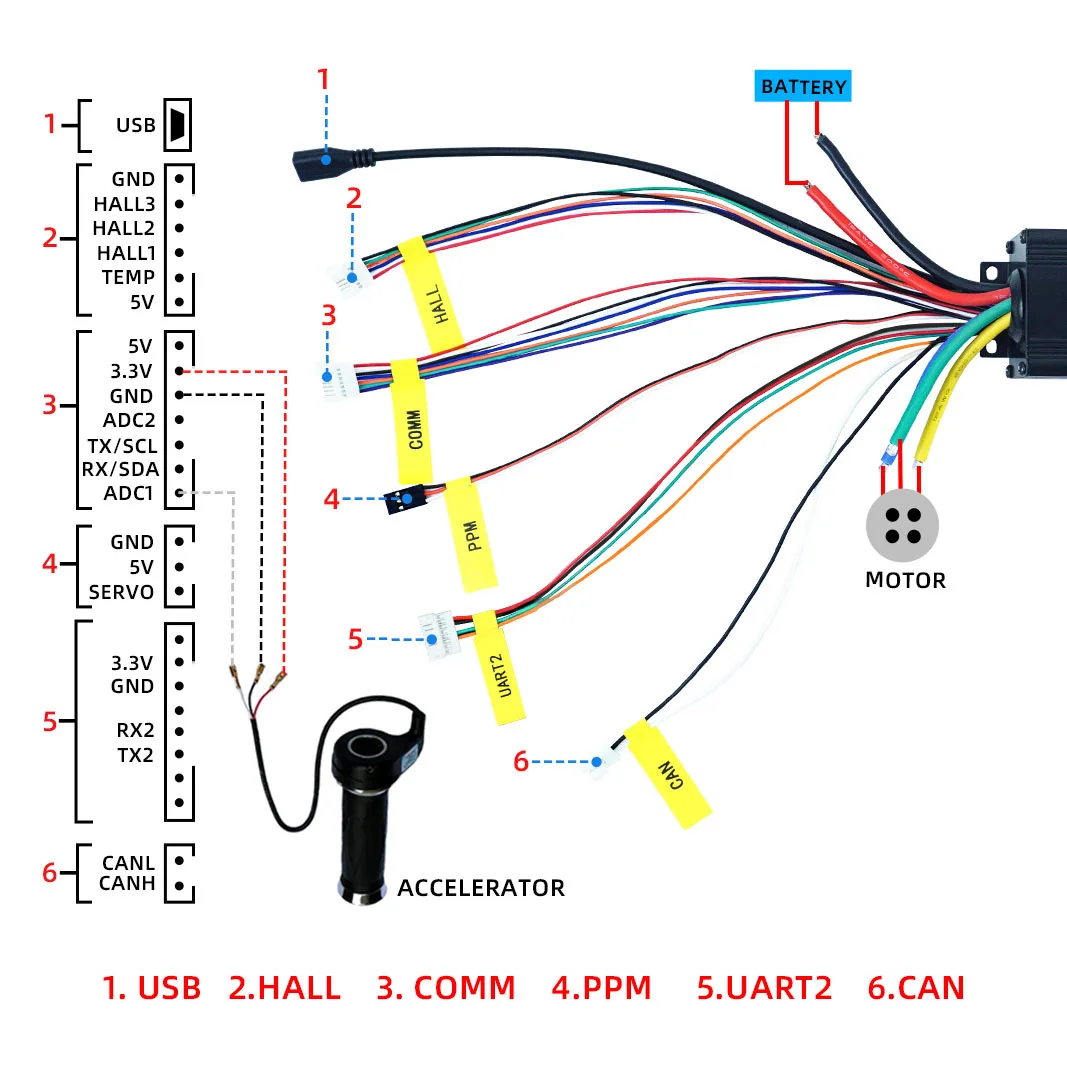

Wiring diagram：
